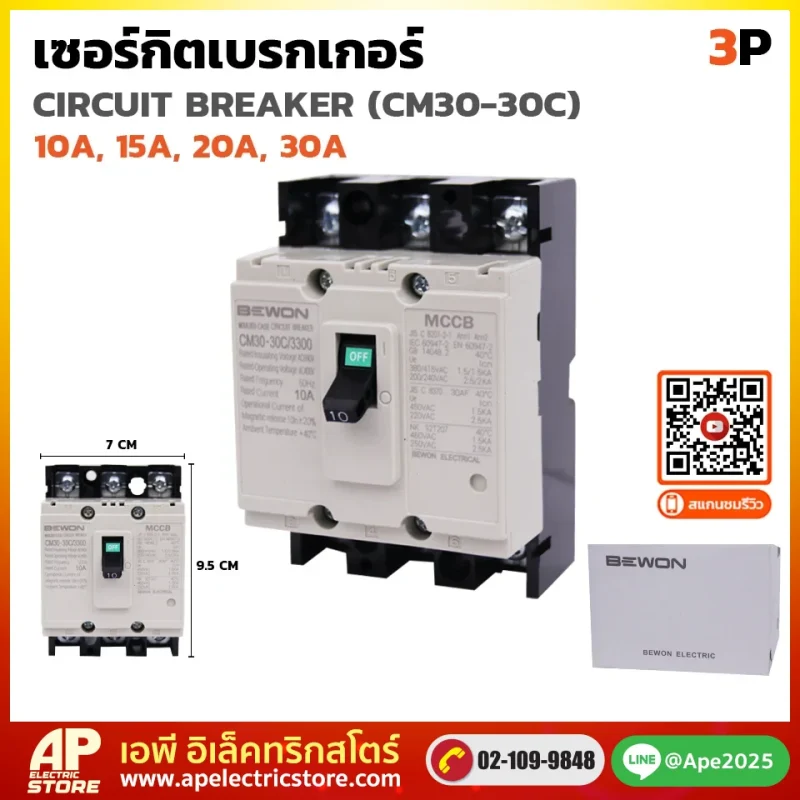

| SPECIFICATION เซอร์กิตเบรกเกอร์ MCCB 3P (CM30-30C) |
|
| Rated Operational Voltage, Ue(VC) | 240/415V |
| Rated frequency | 50/60Hz |
| Rated Current, ln | 10A, 15A, 20A, 30A |
| Rated Insulation voltage, Ui(V) | 690V |
| Rated short-circuit breaking capacity, lcu (KA) |
380V = 1,500A |
| Mechanical life (circle) | 7,000 |
| Electrical life (circle) | 4,000 |
| Standard | IEC/EN 60947-2 |
| Dimension | 68 x 97 x 65mm |
| Weight | 0.336Kg |
