คำอธิบาย

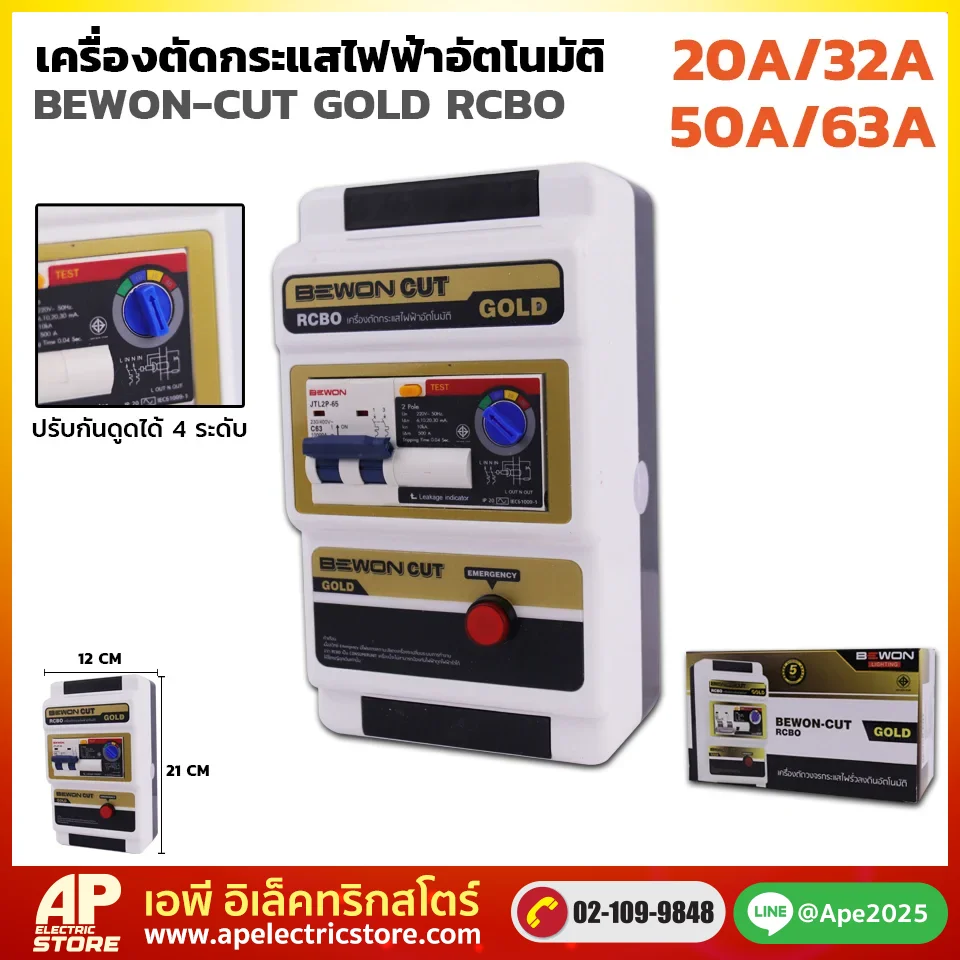

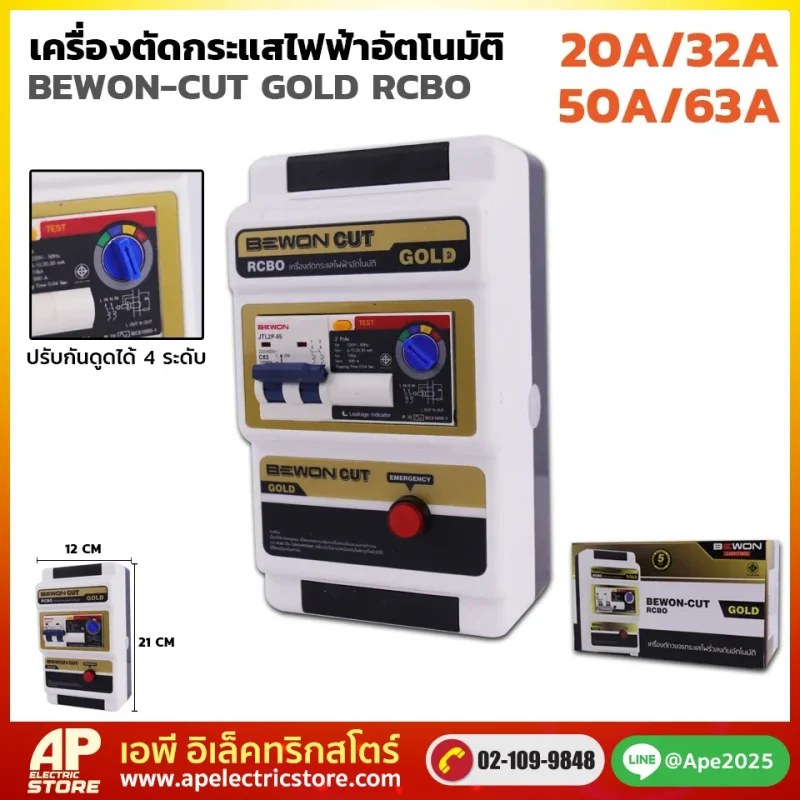

| SPECIFICATION เครื่องตัดวงจรกระแสไฟรั่วลงดินอัตโนมัติ (BEWON CUT GOLD) |
|
| Rated Voltage Ue | 220V |
| Rated frequency | 50/60Hz |
| Rated current ln | 20A, 32A, 50A, 63A |
| Rated residual breaking capacity (IΔm) | 500A |
| Resistance short circuit limit | 10KA |
| Voltage insulation | Not more than 690V |
| Sensitive of circuit breaker | < 0.04 sec |
| IP Level | IP30 |
| Standard | TIS.909-2548 IEC61009-1 |
| Dimension | 120 x 210 x 95mm |
| Weight | – |
