| SPECIFICATION | |

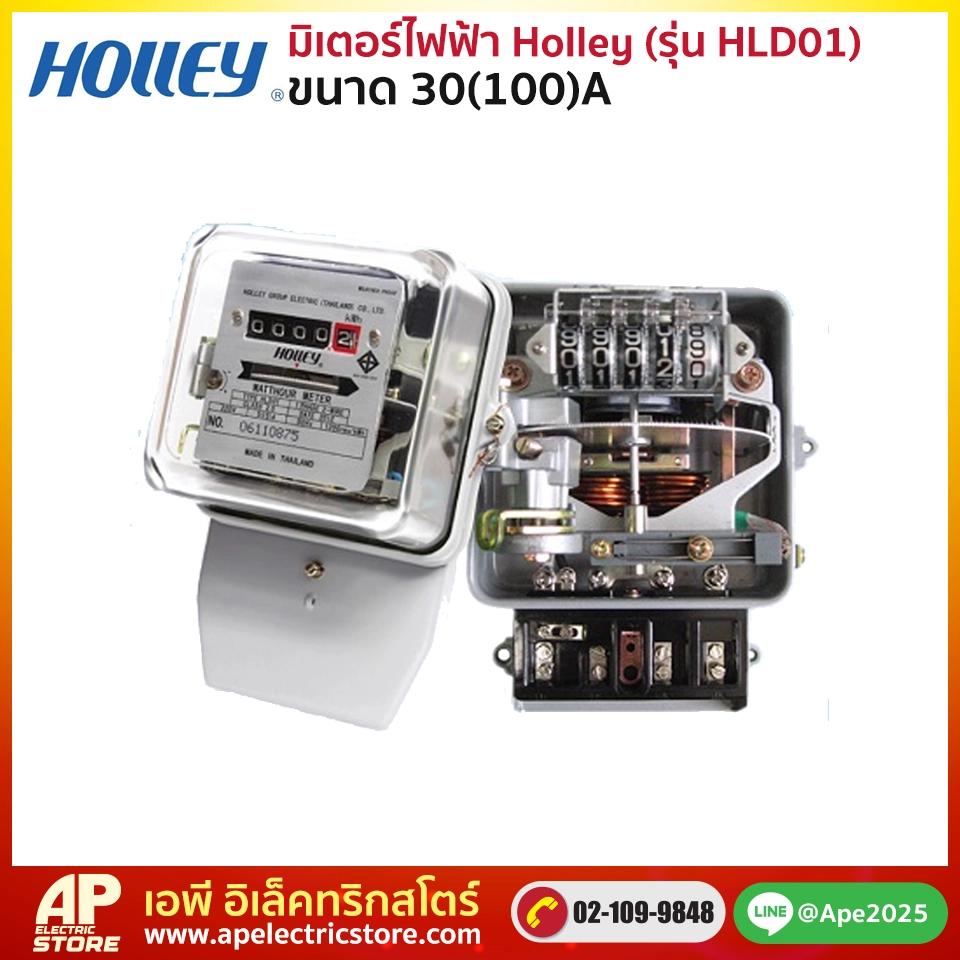

| Type | HLD01 |
| Type Of Connection | Direct |
| Standard Reference Voltage | 220V |
| Optional Reference Voltage | 110,120,230,240,250V |
| Rated Frequency | 50 Or 60 Hz |
| Rated (Max) Current | 30(100)A |
| Voltage Circuit Consumption At Nominal Charge |
<1VA |
| Current Circuit Consumption At Nominal Charge |
<1W <5VA |
| Startong Cirrent | <0.5% Lb |
| Lower Bearing | Magentic |
| Accuracy | Class 2.0 |
| Case | Metal |
| Terminal Cover | Extended/Short |
| Register | Cyclometer |
| Standard | TIS.2336-2552 |
| Product Dimension | 118 x 206 x145mm |
| Product Weight | 2.0Kg |
